Source grouping
Source grouping is used to summarise results by type, and also to enable certain types of sources to be on/off dependent on train speed.
Overview
Example of usage for point source.
Input Parameters

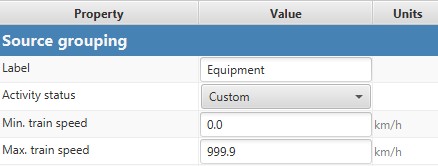

Properties for a source grouping.
| Name | Data type | Unit | Comment |
|---|---|---|---|
| Label | Text | - | A label for this Souce grouping. Special characters are not allowed. |
| Activity status | Choice | - | The setting for the activity status of this Source grouping. This controls whether the sources will be active in a calculation. Available options are: On, Off, Pass-by only, Standstill only, Aero or Custom. |
| Min. train speed | Number | km/h | The minimum speed for which sources within the source grouping will be active. |
| Max. train speed | Number | km/h | The maximum speed for which sources within the source grouping will be active. |
